Light Sources
Light Sources for Spectroscopy

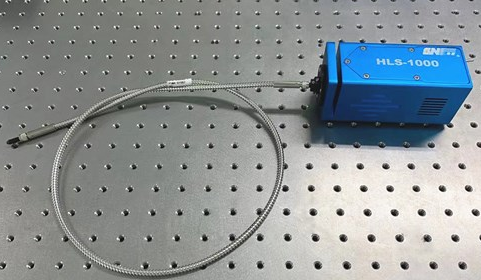

Compact Halogen Light Source
| Property | Details |
|---|---|
| Spectrum range | 340 nm - 2000 nm |
| Dimensions (mm) | 153.70 × 63.5 × 55 |
| Weight | 0.63 kg |
| Power consumption | ~8 W |
| Color temperature | 2800K |
| Lamp lifetime | ~2,000 hours |
| Rated power of the lamp | 5 W |
| Connector | SMA 905 optical fiber output |
| Output power | 6.0 mW |
| Warm-up time | 10 minutes |
| Operating temperature | 5-35°C |

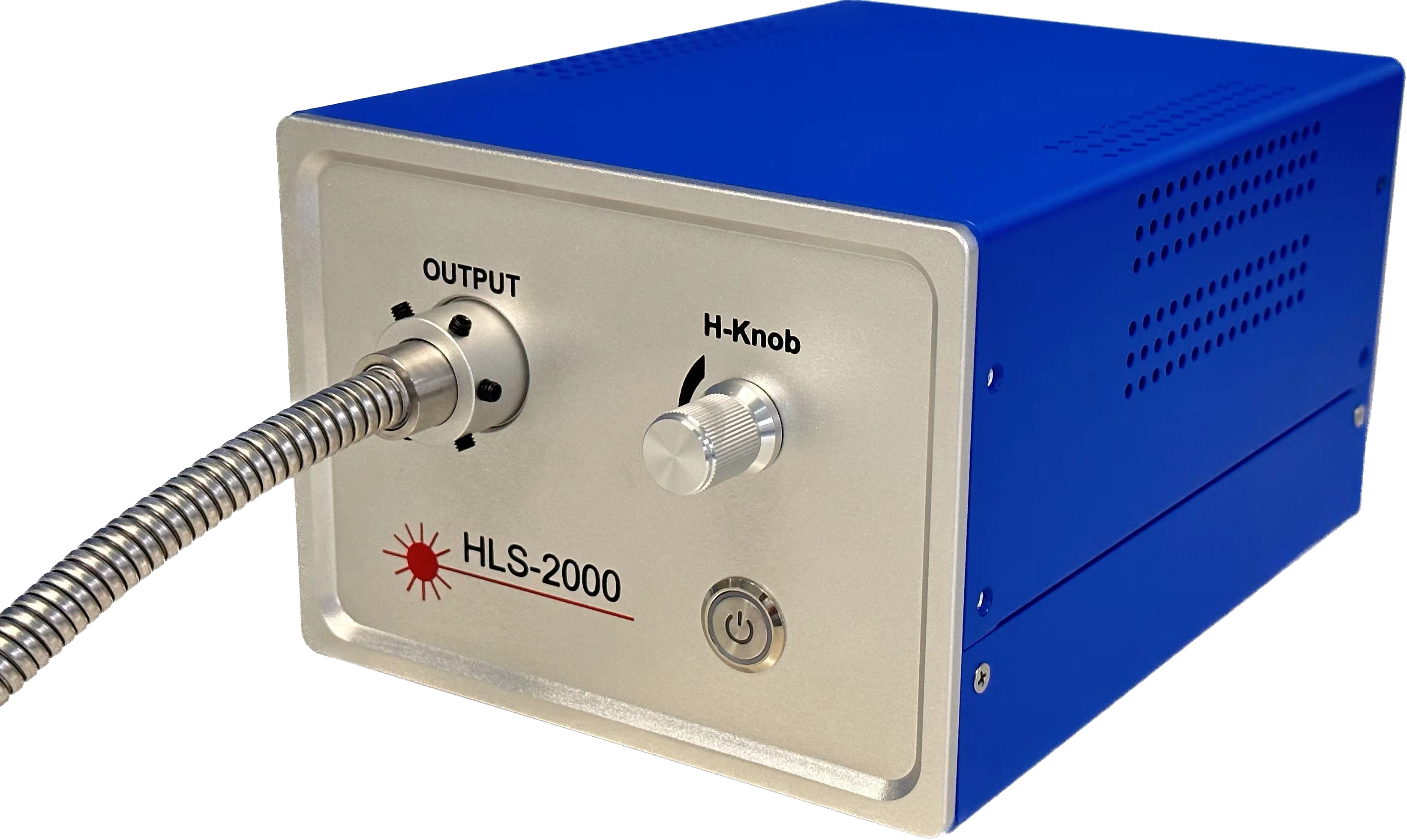

Laboratory Halogen Light Source
| Property | Details |
|---|---|
| Spectrum range | 400 nm - 1600 nm |
| Dimensions (mm) | 220 x 150 x 117.5 mm |
| Color temperature | 3200K |
| Lamp lifetime | ~1,000 hours |
| Rated power of the lamp | 150 W |
| Connector | Optical fiber bundle |
| Output light power | Adjustable 0-100% |

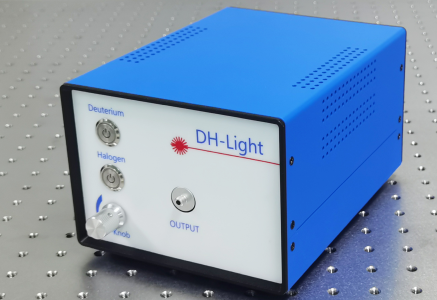

Deuterium-Halogen Light Source
The DH-Light deuterium-halogen light source is a composite light source that combines continuous deuterium and tungsten-halogen lamps in a single channel, providing continuous output in the UV-NIR (190 nm-2500 nm) range. The deuterium and tungsten-halogen lamps can be controlled separately to meet various testing requirements.
| Property | Details |
|---|---|
| Model | DH-Light |
| Spectrum range | 190 nm - 400 nm (Deep ultraviolet deuterium lamp) 360-2500 nm (Tungsten-halogen lamp) |
| Dimensions (mm) | 201 × 150 × 110 |
| Weight | 2.5 kg |
| Power consumption | ~78 VA |
| Power supply requirements | 85-250V AC 50-60Hz |
| Rated power of the lamp | 25 W (Deuterium lamp), 5 W (Tungsten-halogen lamp) |
| Lamp lifetime | ～1000 hours (Deuterium lamp) ～2000 hours (Tungsten-halogen lamp) |
| Connector | SMA905/ FC |
| Output power (1000 µm fiber) | 171.6 µW (Deuterium lamp) 2.36 mW (Tungsten-halogen lamp) |
| Warm-up time | 10 minutes |
| Operating temperature | 5-35°C |

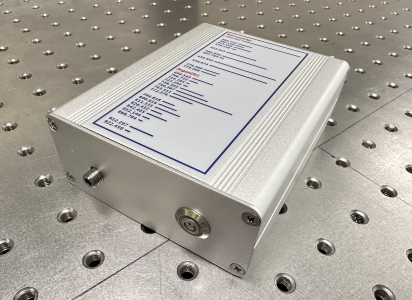

Wavelength Calibration Lamp
The wavelength calibration light source is used for calibrating the wavelength and spectral lines of spectroscopic equipment. Its spectrum range is between 253~912 nm in the UV-visible-NIR band. The easily identifiable mercury and argon transfer spectral lines are marked on the housing, enabling quick and reliable wavelength calibration. It is a stable, long-lasting, cost-effective, and easy-to-use device. The wavelength of a fiber-optic spectrometer may slightly shift over time and due to environmental changes. If wavelength accuracy is critical for your application, consider using the wavelength calibration light source, which allows periodic wavelength adjustments and precise tuning of the fiber-optic spectrometer.
Fiber-Coupled LED Light Sources

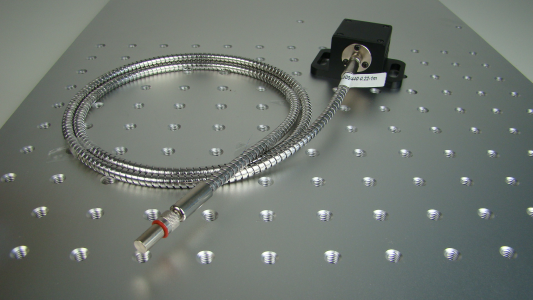

Single LED Light Sources
| Nominal Wavelength (nm) | Bandwidth FWHM (nm) | Typical Φ600µm Core Fiber Output Power SMA (mW) | Maximum CW Current (mA) |
|---|---|---|---|
| 375 | 12 | 10 | 1400 |
| 395 | 10 | 2 | 500 |
| 405 | 12 | 8 | 1400 |
| 430 | 17 | 1.5 | 500 |
| 460 | 18 | 8 | 1000 |
| 470 | 25 | 8 | 1000 |
| 500 | 37 | 3 | 1000 |
| 530 | 35 | 5 | 1000 |
| 565 | 105 | 5 | 1000 |
| 600 | 64 | 3 | 1000 |
| 620 | 18 | 6 | 1000 |
| 625 | 17 | 5 | 1000 |
| 660 | 20 | 5 | 1200 |
| 730 | 42 | 5 | 1000 |
| 850 | 30 | 8 | 1500 |
| 880 | 50 | 1 | 1000 |
| 940 | 37 | 4 | 1000 |
| 1050 | 38 | 4 | 600 |

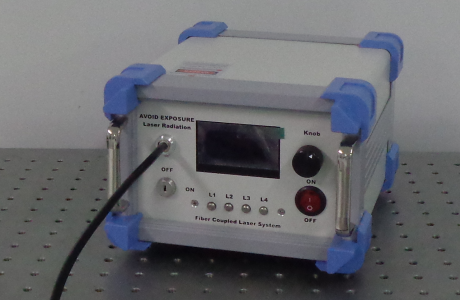

Multi LED Light Sources
| Specification | Details |
|---|---|
| Available Wavelength (nm) | 375-940 |
| Output Mode | Fiber output |
| Fiber Core Diameter (μm) | 400, 600, 800, 1000 |
| Fiber Connector | SMA905 |
| Output Power (mW) | Related to fiber |
| Power Stability (rms, over 4 hours) | <3%, <5% |
| Operating Mode | CW, TTL, or Analog on request |
