Structured Illuminations

Laser Lines

Infrared Laser Lines

For road and railway detection, tunnel detection, high-speed rail detection, and other engineering detection applications.

Laser Lines for Machine Vision

We offer line laser solutions for machine vision, with precision fringes, uniform power distribution, and sharp edges. The luminance uniformity can be up to 85%, power stability less than 0.5%, and straightness error less than 0.1%. The fan angle is available in various values.

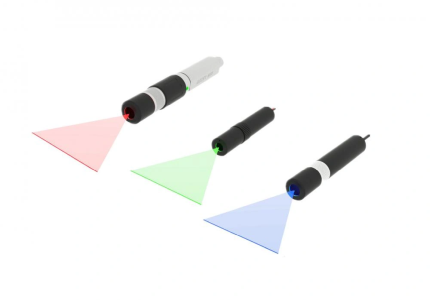

Laser Lines with Optical Fiber

We provide green, blue, red, and near-infrared laser lines generated at the optical fiber output. These are particularly well-suited for applications where a large distance exists between the laser source and the required laser line.

• Wavelengths: 405 nm - 915 nm, other wavelengths available upon request
• Line Width: 1 mm, 2 mm, other values available upon request
• Fan Angle: 5°, 7°, 10°, 15°, 30°, 45°, 60°, 75°, and 90°
• Power: 1 mW - 1 W
• Luminance Uniformity: Up to 85%

Diffraction Patterns

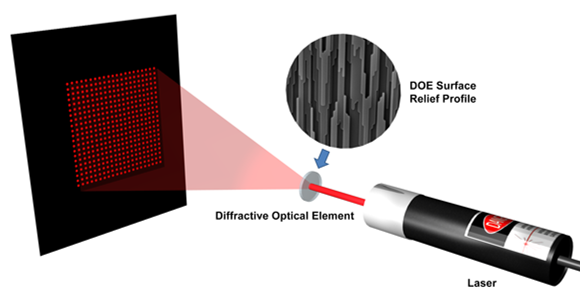

Diffractive Optical Elements (DOE) can be used to create various optical patterns. This series of structured lasers is widely used in machine vision, such as barcode scanners, 3D sensors, and viewfinders.

We can create any custom pattern upon request.

Rectangular Grid

• Wavelengths: 530 nm - 680 nm
• Patterns: 10x10 and 51x51 lines

Dot Matrix

• Wavelengths: 480 nm - 750 nm

Multiline

• Wavelengths: 480 nm - 700 nm
• Patterns: 3-81 lines, square and rectangular shapes

Multi-Ring

480 nm - 700 nm
- Patterns: 5, 10 rings

Crosshair

Hexagonal

Viewfinder

Random Dot Matrix

Variable Pattern Generation with Spatial Phase Modulator (SLM)

Digitally controlled pattern generation using an active optical spatial phase modulator

Customer specific configurations upon request. - Wavelengths: 405nm - 1064​nm - Pixel number: 800x600, 1024x768, 1920x1080, 2048x1536 - Phasemodulation: upto 2π
