Diode Lasers
TEM00 Diode Lasers
We offer TEM00 mode diode lasers characterized by TEM00 mode, high performance, ultra-compact size, long lifetime, low cost, and ease of use. They are widely used in measurements, communication, scientific experiments, spectral analysis, optical instruments, and many other fields. Additionally, they have very high beam quality (M² < 1.1), enabling nearly lossless beam shaping for application needs.
- Wavelengths: 405, 450, 488, 520, 635, 640, 660, 685, 785, 808, 830, 1053, 1310, 1550 nm
- Power: 1-80 mW
Tunable Wavelength Lasers
We offer lasers with tunable wavelengths where the output wavelength can be continuously adjusted within a specified range. These tunable lasers feature good beam quality, high stability, and long lifetime.
Tunable Diode Lasers
| Wavelength | Power | Bandwidth |
|---|---|---|
| 403~406 nm | 1~30 mW | <0.1 nm |
| 408~411 nm | 1~30 mW | <0.1 nm |
| 448~452 nm | 1~10 mW | <0.1 nm |
| 518~522 nm | 1~10 mW | <0.1 nm |
| 628~637 nm | 1~40 mW | <0.1 nm |
| 634~643 nm | 1~10 mW | <0.1 nm |
| 657~664 nm | 1~40 mW | <0.1 nm |
| 779~791 nm | 1~10 mW | <0.1 nm |
| 802~814 nm | 1~5 mW | <0.1 nm |
| 822~837 nm | 1~10 mW | <0.1 nm |
| 841~856 nm | 1~10 mW | <0.1 nm |
| 918~941 nm | 1~10 mW | <0.1 nm |
| 1054~1074 nm | 1~40 mW | <0.1 nm |
Tunable Ti-Sapphire Lasers
| Wavelength | Power | Bandwidth |
|---|---|---|
| 770~840 nm | 1~400 mW | <40 pm |
| 770~840 nm | 1~1000 mW | <2 nm |
| 770~840 nm | 1~2500 mW | <2 nm |
| 780~850 nm | 1~500 mW | <2 nm |
Tunable Infrared Lasers
| Wavelength | Power | Bandwidth |
|---|---|---|
| 1527~1660 nm | 1~2000 mW | <2 nm |
| 2600~4410 nm | 1~1000 mW | <2 nm |
Tunable Pulsed Lasers
| Wavelength | Pulse Energy | Bandwidth |
|---|---|---|
| 710~810 nm | 1~20 mJ | <3 nm |
| 420~120 nm | 1~23 mJ | 1~6 nm |
High Coherence Length Diode Lasers

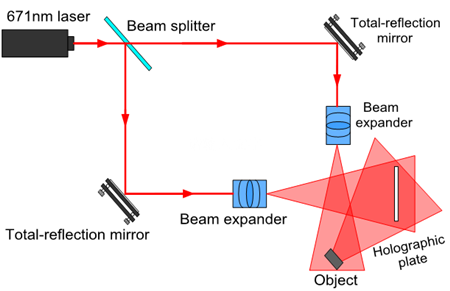

Long coherence length (>1 m), ideal for applications in holography, DNA sequencing, flow cytometry, digital imaging, analytical chemistry, particle measurement, confocal microscopy, Raman spectroscopy, and many other fields. Housed in an ultra-compact design.
- Wavelengths: 375, 400, 405, 410, 415, 442, 445, 447, 450, 457, 488, 514.5, 520, 633, 635, 637, 640, 642, 705, 730, 785, 808, 830, 852 nm.
- Power: 1 - 50 mW
Pulse Lasers
We offer pulsed diode lasers with adjustable pulse widths from 100 ps to 10 ms, featuring good beam profile and high power stability. The output power can be controlled via software. Thanks to its ultra-compact design, it can be easily integrated into user equipment.

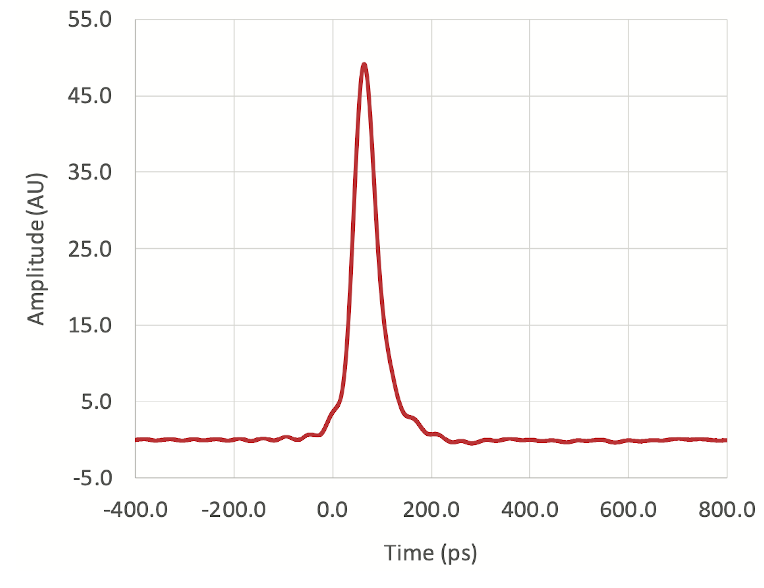

Picosecond Pulse Lasers
- Wavelengths: 375, 400, 405, 445, 447, 450, 488, 520, 633, 635, 637, 640, 642, 655, 660, 785, 808, 852, 905, 915, 940, 980, 1060, 1064 nm.
- Power: 1-60 mW
- Pulse Duration: 100-1000 ps
- Pulse Frequency: 0.1-80 MHz
Nanosecond Pulse Lasers
- Wavelengths: 375, 395, 405, 420, 445, 447, 450, 488, 505, 510, 520, 633, 635, 637, 640, 642, 655, 660, 685, 705, 730, 785, 808, 830, 852, 905, 915, 940, 980, 1060, 1064, 1310 nm
- Power: 1-500 mW
- Pulse Duration: 10 ns - 10 ms
- Pulse Frequency: 0.1-80 MHz

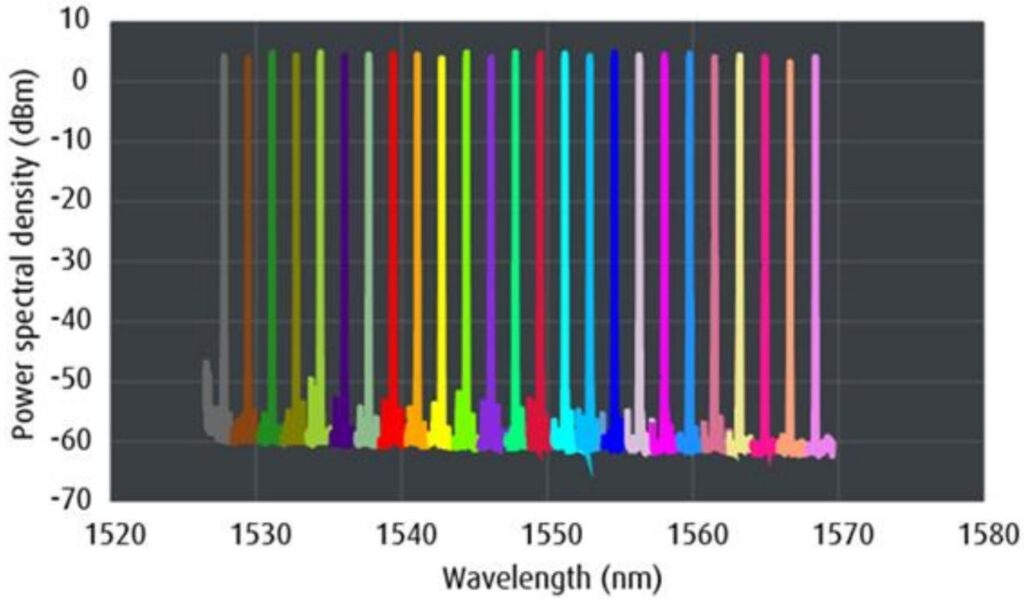

Narrow Bandwidth Lasers
- Wavelengths: 375, 400, 405, 410, 415, 442, 445, 447, 450, 454, 457, 460, 488, 514.5, 520, 633, 635, 637, 640, 642, 705, 730, 785, 808, 830, 852, 915, 940, 975, 980, 1060 nm
- Bandwidth: <0.03 nm
- Power: 1 - 70 mW
