Measurement Services

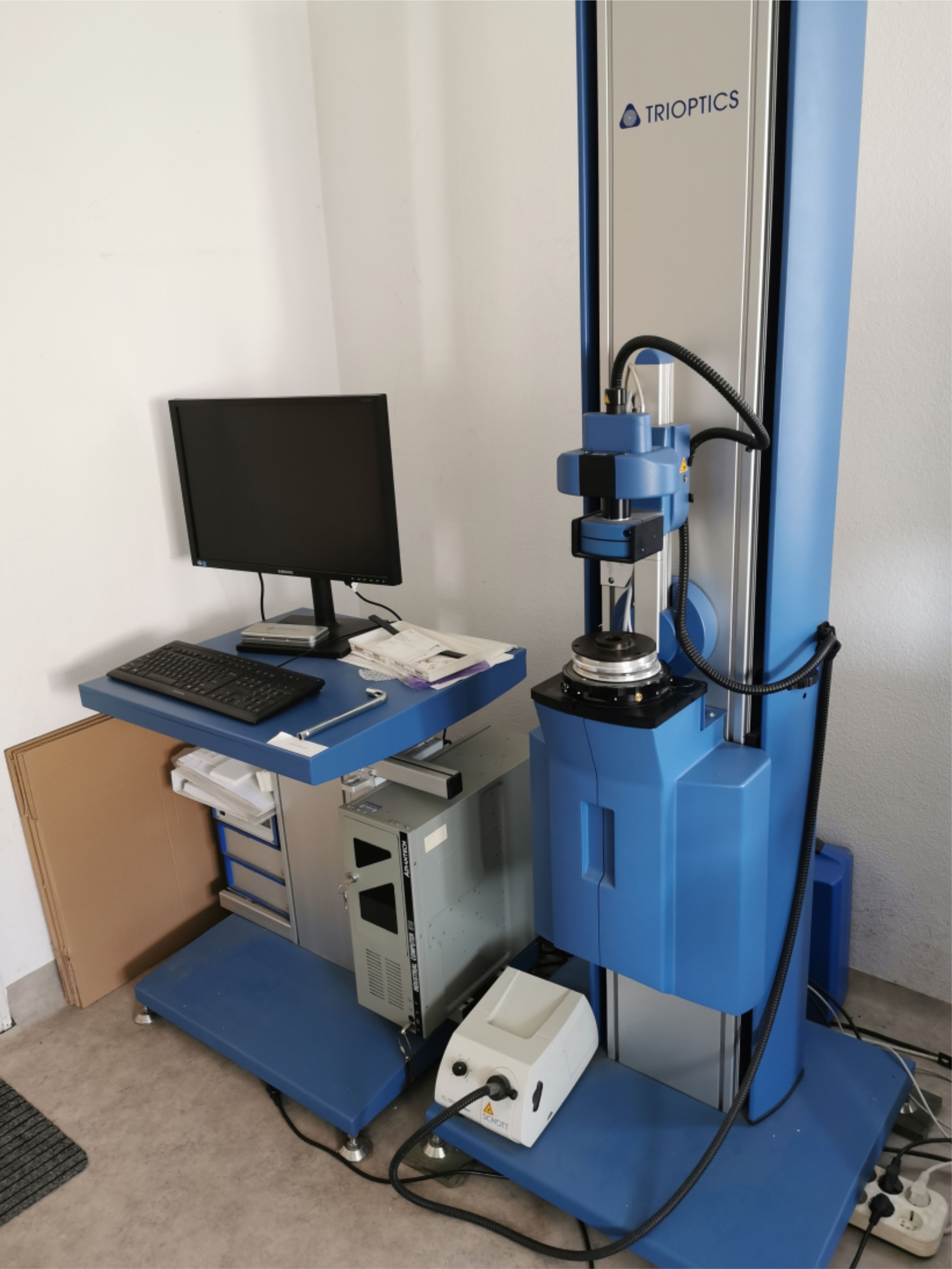

MTF and Aberration Measurements with our Trioptics ImageMaster HR System

Primarily used for measuring our own designed optics, but we also offer inspection services for any lenses or optical systems upon request.

• Semi-automatic, ultra-high precision, multifunctional MTF test station
• Accuracy traceable to international standards
• MTF measurement for finite and infinite conjugates
• Suitable for small and medium-sized samples
• Available in NUV/VIS/NIR/LWIR spectrum
• Vertical setup for the most comfortable and accurate lens positioning
• Ultra-wide field of view ± 110°
• Optimal design prevents vignetting

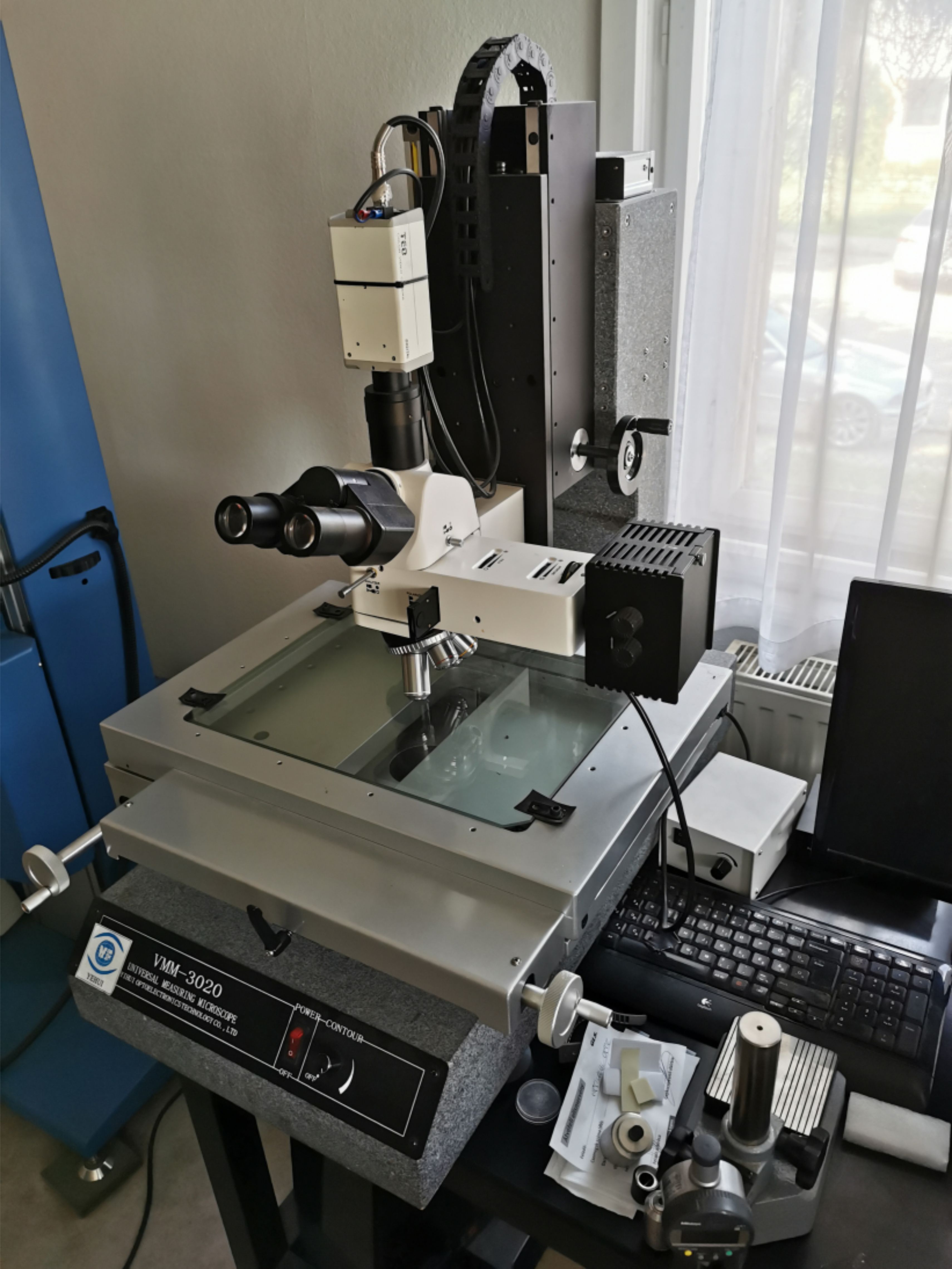

3D Geometric Measurements with our YEHUI VMM-3020 Microscope

If you need high-quality optical microscopic examinations, we can perform measurements according to the following parameters.

• Usage: Micrometer-precision geometric measurements on samples made of almost any material
• Measurement range: 300 x 200 x 150 mm
• Accuracy: Ex,y ≤ (2.5 + L/200) µm
• Resolution: 0.5 µm

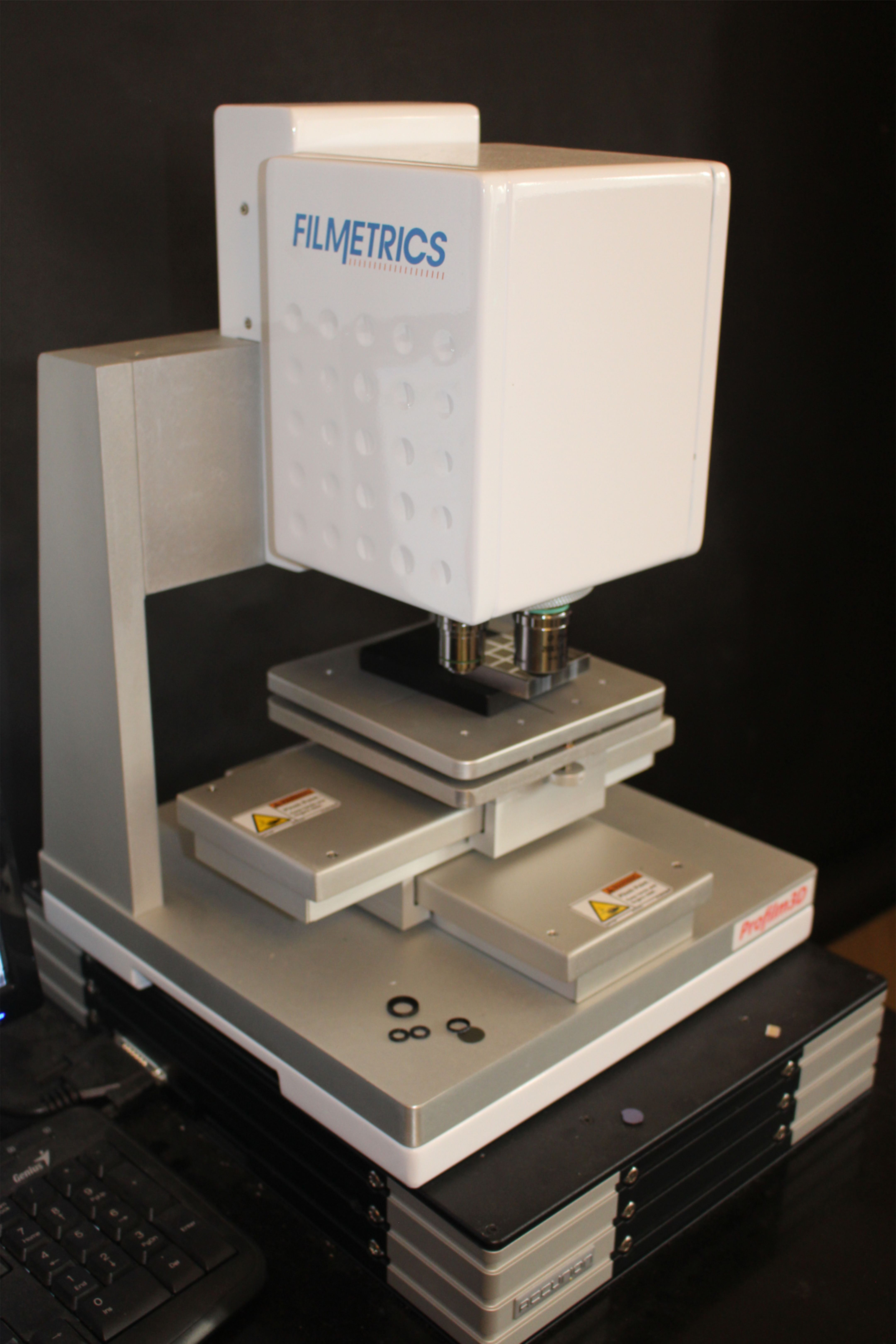

3D Surface Profilometry with Filmetrics White Light Interferometer

The white light interferometer is suitable for 3D surface profile measurements. It is most commonly used for determining surface roughness and scanning microstructures.

• Functional areas: 3D roughness, waviness, radius, and shape
• Vertical measurement range: 100 mm
• Piezo range: 500 µm
• XY stage range: 100 mm x 100 mm
• Camera: 2592 x 1944 (5 megapixels)
• Lateral (x-y) resolution: 1 µm
• Vertical resolution: 0.01 µm

Spectrometers, Light Sources, Monochromators

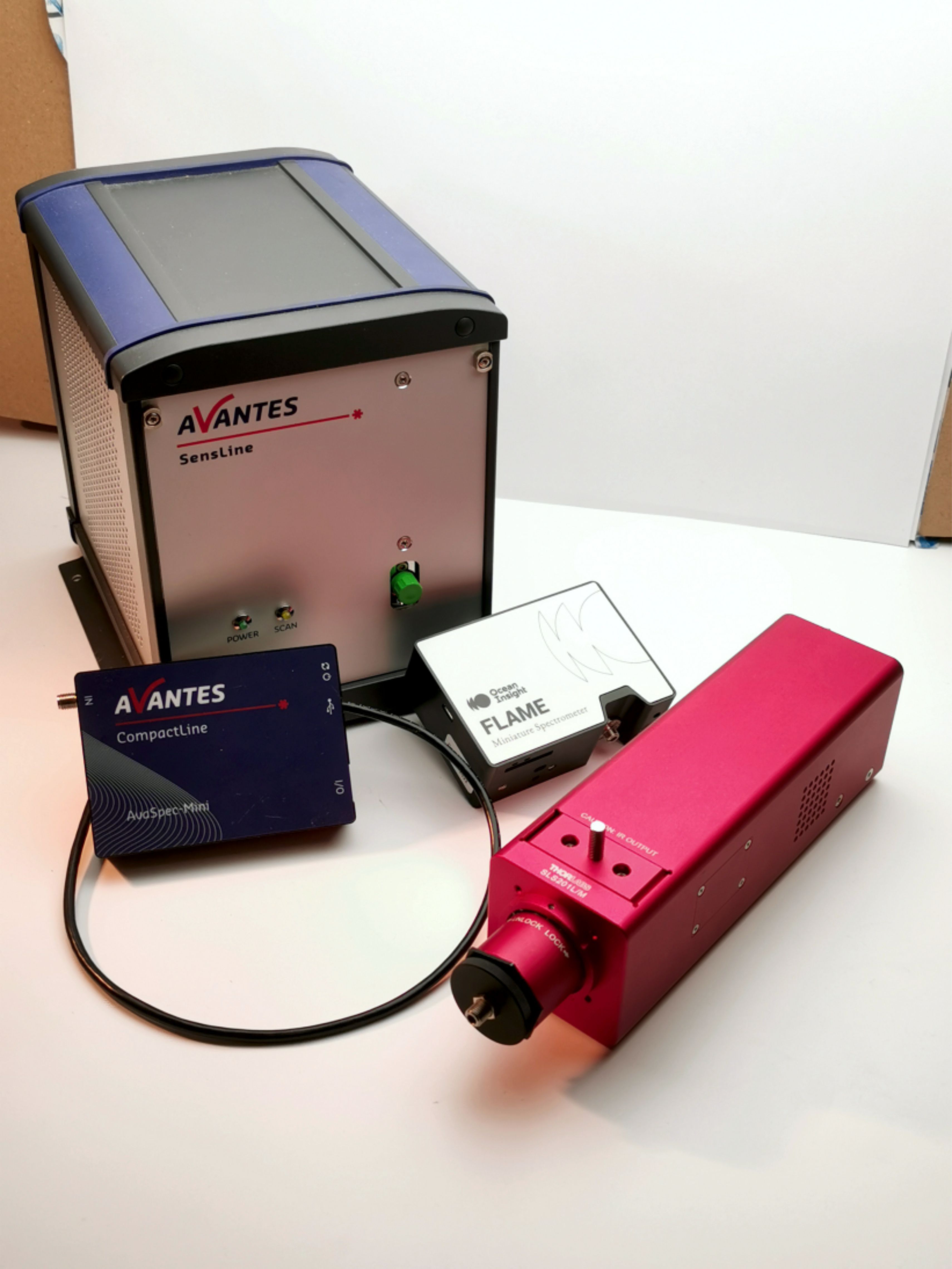

We have numerous spectrometers, light sources, and monochromators, allowing us to conduct investigations in almost any setup and wavelength in our optical lab. Our spectrometers:

• Avantes AvaSpec HSC1024x58 TEC-EVO cooled spectrometer
• Ocean Insight FLAME-T-XR1 compact spectrometers
• Avantes AvaSpec Mini2049-CL-UV125 mini spectrometer
• Hamamatsu C12666MA micro-spectrometers

Light sources:

• Thorlabs SLS201L/M stabilized halogen lamp
• Zeiss KL1500 halogen lamp
• Hamamatsu L9455 Xenon lamps
• Lumentum 1125P, 632.8 nm, HeNe laser
• CNI AO-V-355 water-cooled, 355 nm pulsed machining laser
• 532 nm frequency-doubled Nd-YAG laser
• Various IR range lasers
• Thorlabs SLD880-A25 superluminescent diode

Detectors:

• Coherent FieldMaxII-TO laser power meter
• Thorlabs Si detectors
• Hamamatsu H10721 photomultiplier tubes (PMT)
• Menlo Systems APD210 1600 MHz avalanche photodiode module
• Additionally, various photodiodes and amplifier modules are available in our lab

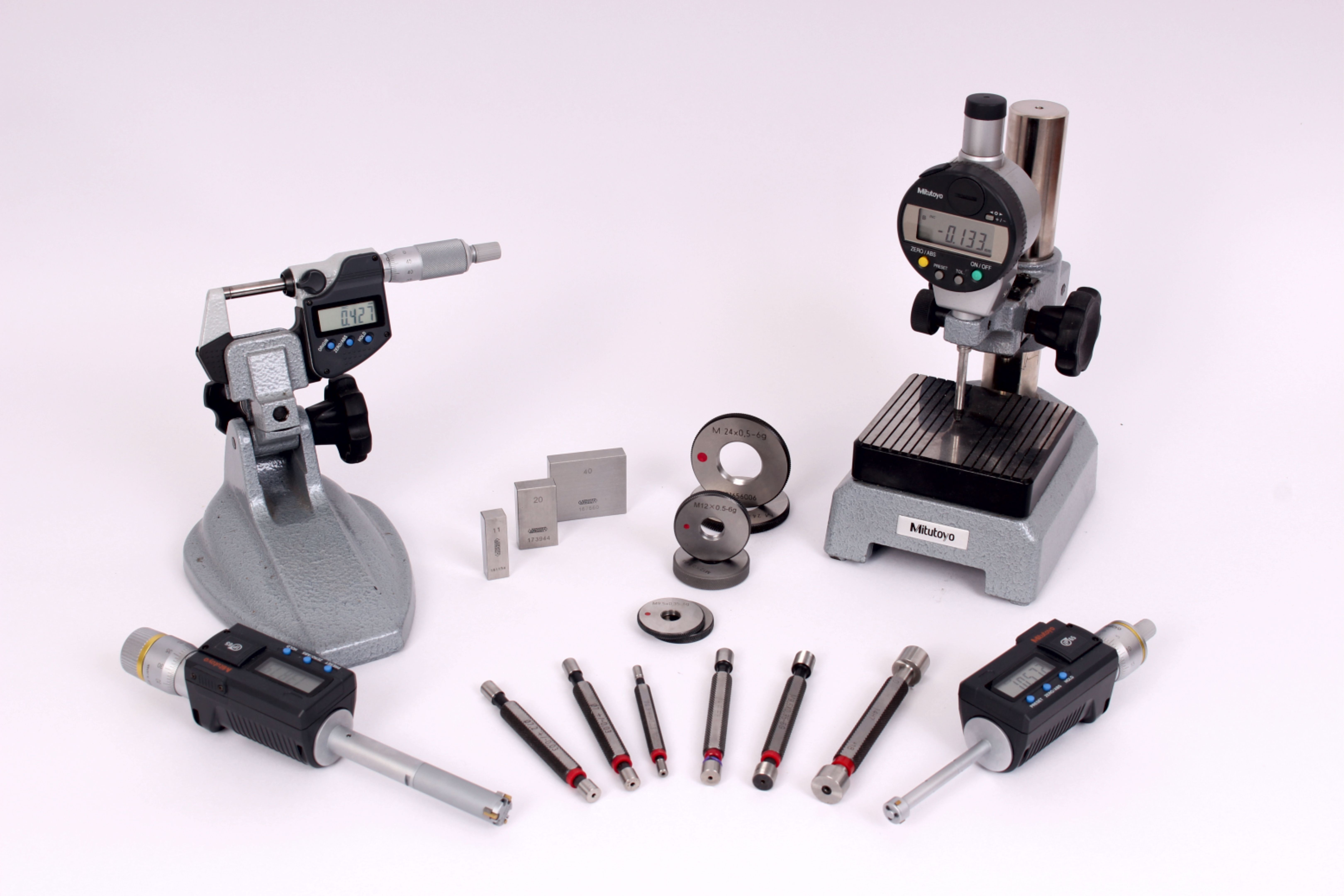

Gauges, Precision Mechanical Measuring Tools

Whether it is for verifying the precision of mechanical elements, fittings, threads we manufacture, or ensuring compliance with standards, we have a wide selection of tools for mechanical measurements:

• Mitutoyo bore micrometers
• Mitutoyo handheld and bench micrometers
• Gauges, calibration elements
• Mitutoyo calipers, protractors
