Milling

Manufacturing custom parts and executing special modifications using manual and CNC milling machines.

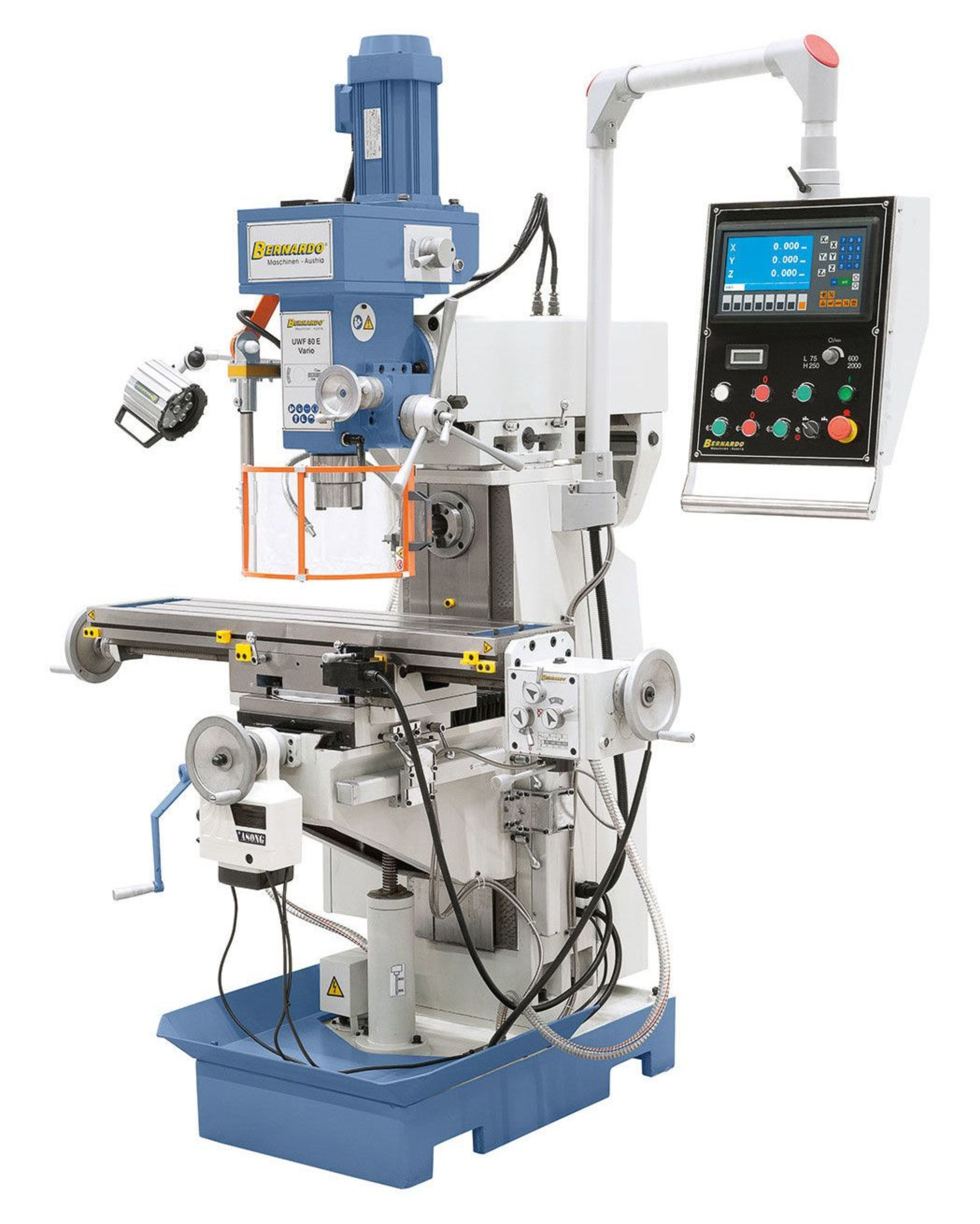

Bernardo UWF 80 E Vario Manual Milling Machine

  • Working area: Table size: 1000 x 240 mm
  • Spindle taper: ISO 40
  • Vertical spindle speed: 75 - 600 / 250 - 2000 rpm
  • Horizontal spindle speed: 60 - 1350 rpm
  • X-axis travel: 590 mm
  • Y-axis travel: 175 mm
  • Z-axis travel: 320 mm
  • Motor power - vertical: 2.2 kW
  • Motor power - horizontal: 1.5 kW
  • Machine dimensions (W x D x H): 1600 x 1500 x 2100 mm
  • Weight: 1010 kg

The Bernardo UWF 80 E Vario is a universal milling machine equipped with a variable speed vertical spindle, allowing optimal cutting speed adjustments. It features automatic table feed and a wide range of applications such as slot milling, face milling, and drilling.
