Laser measurement

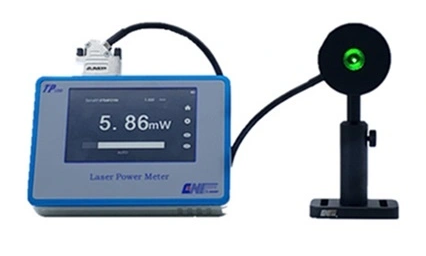

Laserpower Meter
Precision Photodetector Power Meter
- Wavelength range: 0.2-1.1 µm
- Power density threshold: 1 W/cm²
- Power range: 1 nW - 1 W
- Sensor surface diameter: 9.5 mm
Thermal Laserpower Meter
- Wavelength range: 0.19-25 µm
- Power density threshold: 45 kW/cm²
- Power range: 2 mW-300 W (2 W/ 5 W/ 15 W/ 35 W/ 50 W/ 100 W/ 200 W/ 300 W)
- Sensor surface diameter: 22/ 25/ 40 mm

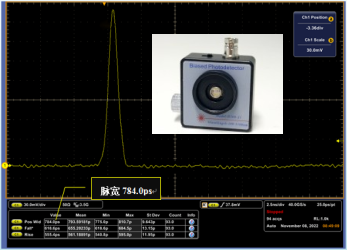

Photoelectric Pulse Meter
| Wavelength range | Rise time | Bandwidth |
|---|---|---|
| 200-1100 nm | 1 ns | 350 MHz |
| 320-1100 nm | 35 ns | 10 MHz |
| 800-1700 nm | 350 ps | 5 GHz |
| 320-1100 nm | 35 ns | DC-11 MHz |
| 350-1100 nm | 10 ns | DC-12 MHz |

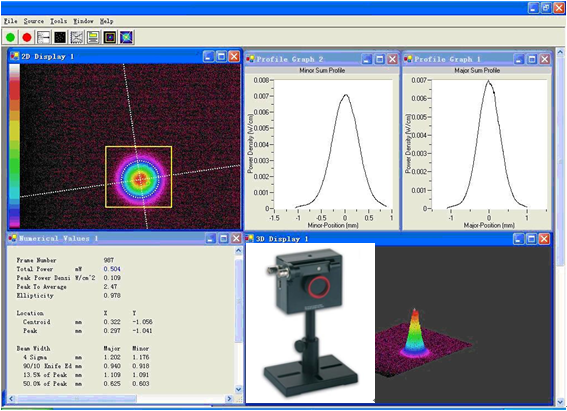

Beam Profile Analyzer
The beam profile analyzer is used to test the transverse energy distribution of the laser. One-dimensional, two-dimensional, and three-dimensional energy distributions are displayed in the software, along with transverse mode characteristics such as spot diameter, divergence, ellipticity, etc.
- Wavelength range: 350-1320 nm
- Spot size: 17 μm - 5 mm
