Engraving

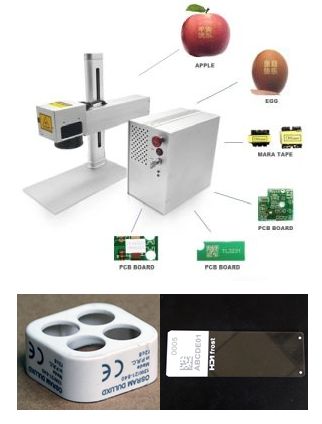

Distribution of Laser Engravers
Custom markings, QR codes, barcodes with CO2 and UV laser engraving.
Distribution of Laser Engravers
- Wavelengths: 355, 532, 1064 nm
- Materials: Metal, plastic, etc.
- Standard contrast: > 300:1
- Maintenance-free air-cooled system with a long lifespan.
- Excellent beam profile for achieving fine marking lines.
- No dust or smoke generated during marking.
| Peak Power | 10 kW |
| Focus Length | ~160 mm |
| Marking Area | 110 mm x 110 mm |
| Marking Depth | ≤0.2 mm |
| Maximum Marking Line Speed | 7000 mm/s |
| Minimum Marking Line Width | ≤0.1 mm |
| Power Consumption | ≤0.2 kW |

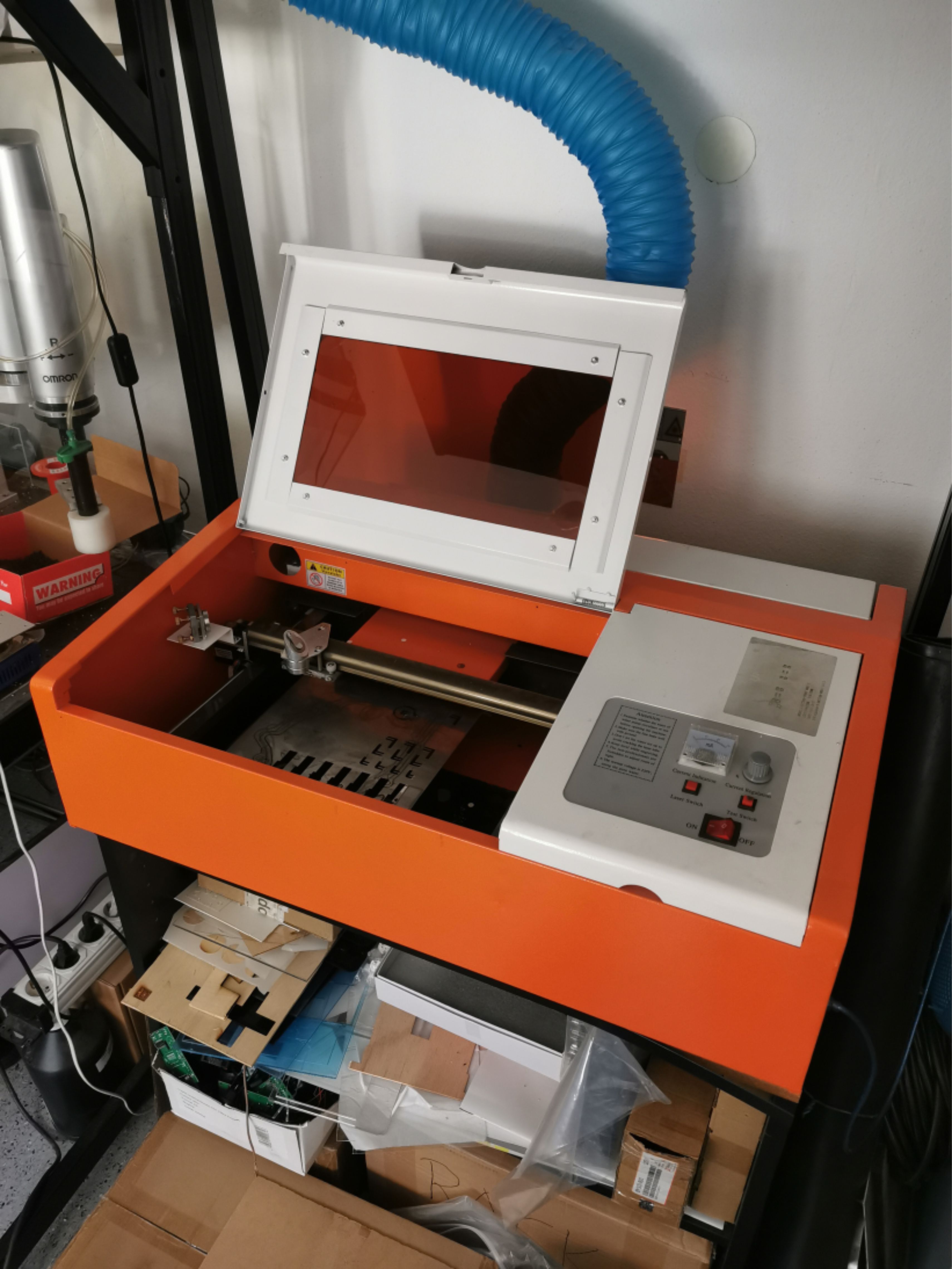

CO2 Engraving Laser
Placement of inscriptions and markings, cutting custom shapes from plastic or wood sheets with 100 µm precision.

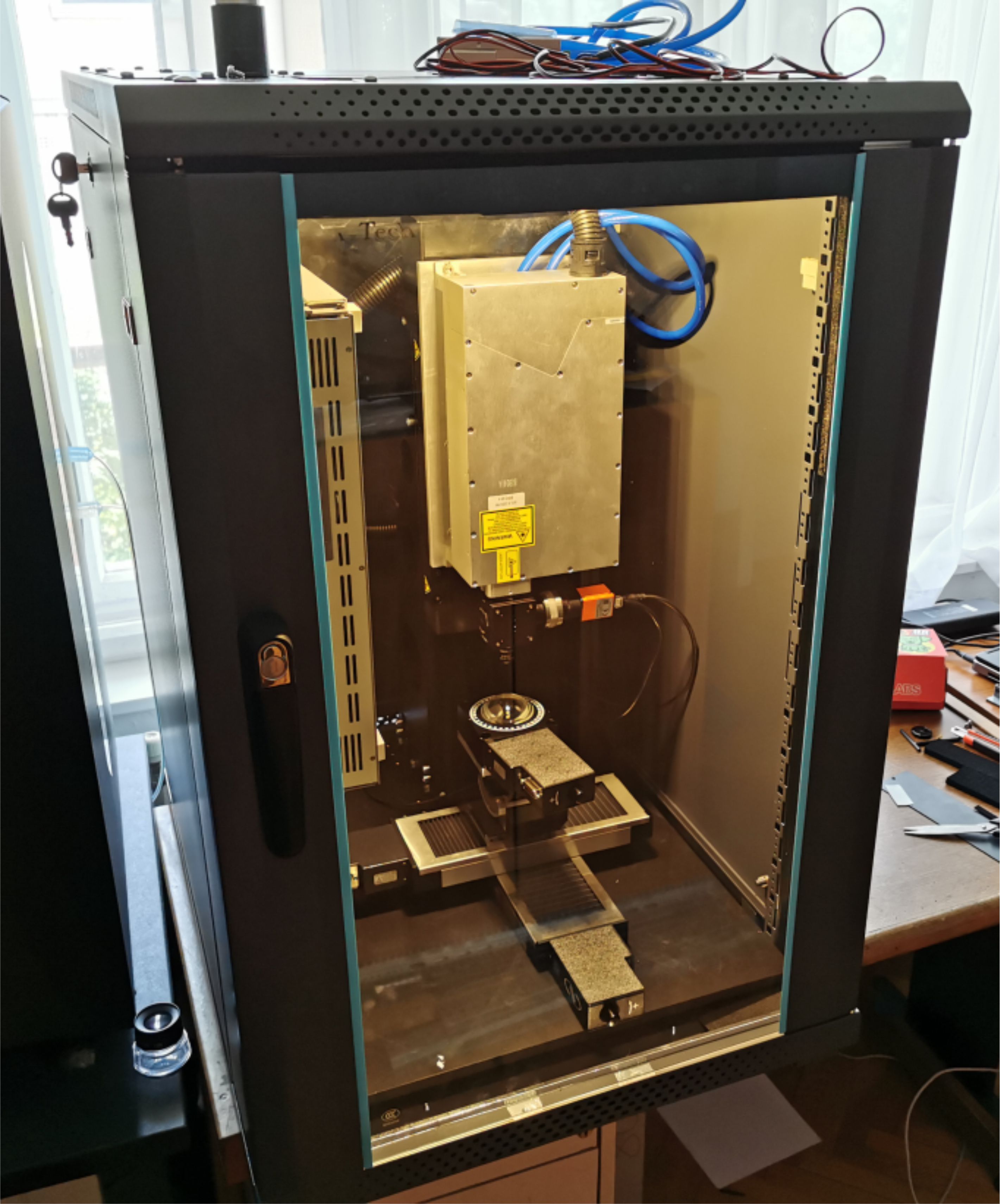

UV Engraving and Processing Laser
Ultra-precise surface processing with ~µm accuracy, primarily for creating custom apertures and processing glass.
The laser system uses a 355 nm frequency-tripled YAG laser capable of evaporating material to be removed at a repetition rate of 1 MHz.
The movement of the workpiece is managed by a 5-degree-of-freedom Newport motion system, which can move and position with a precision of 0.1 µm.
