Precision CNC Turning

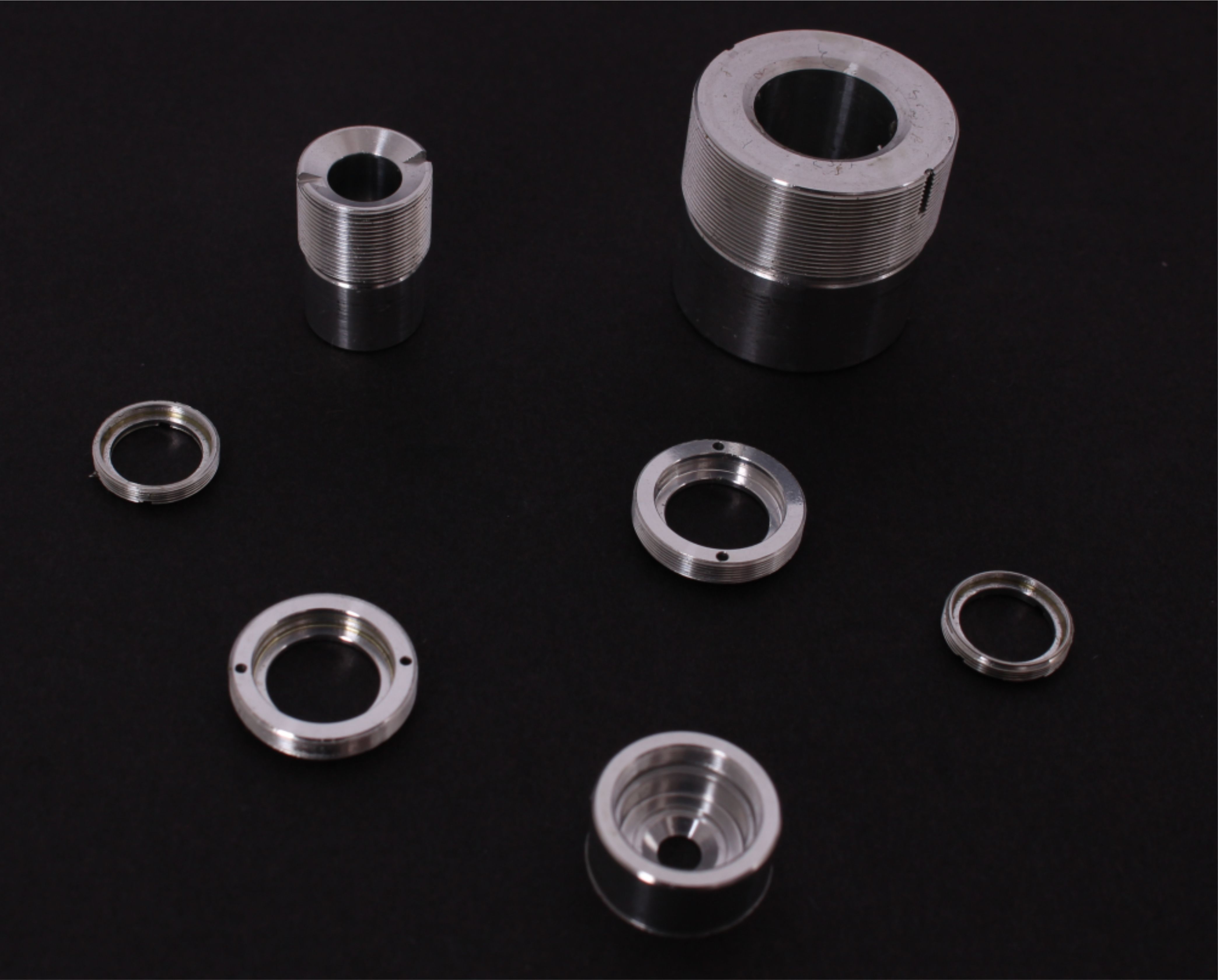

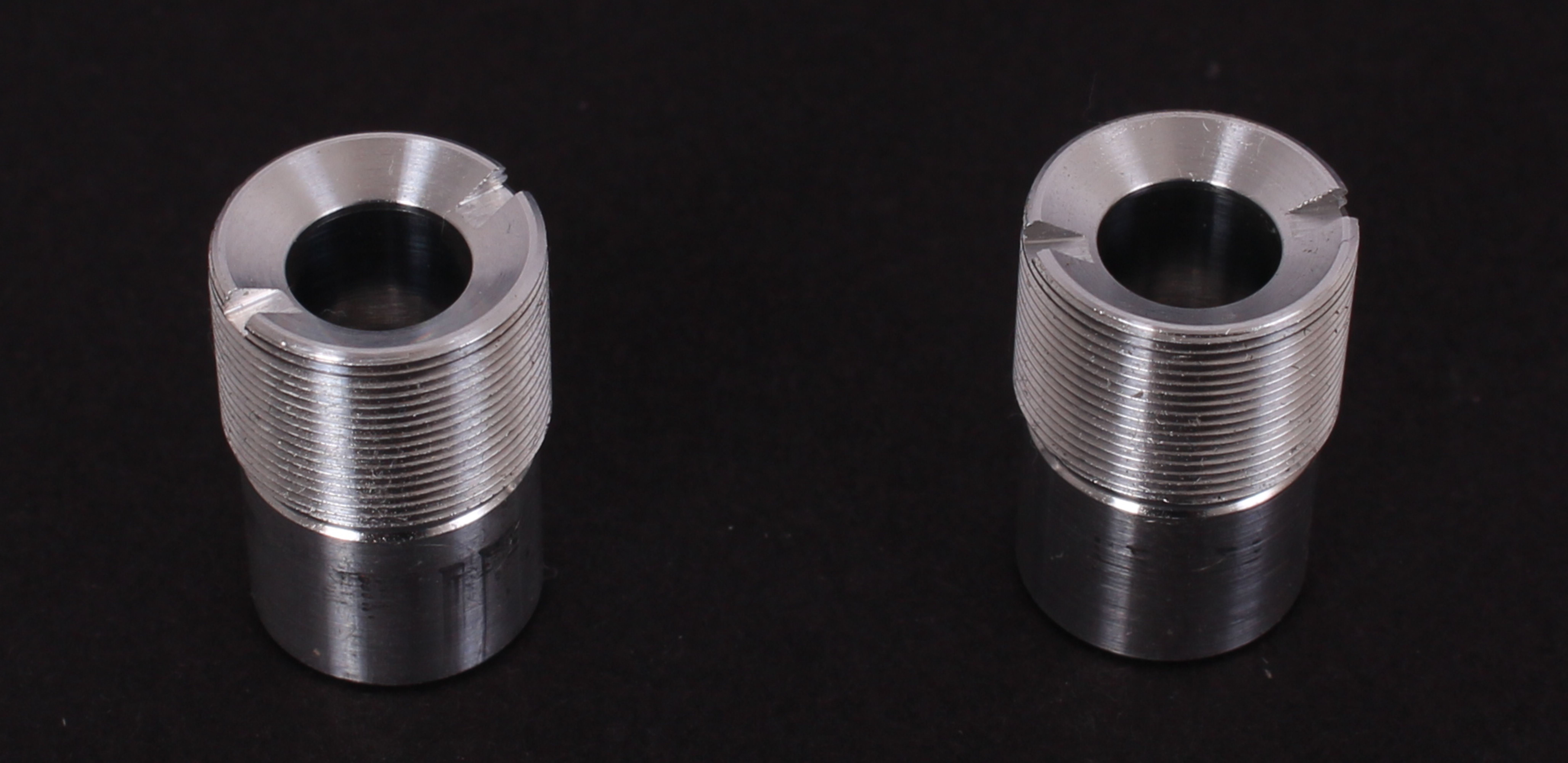

Manufacturing miniature, high-precision turned parts with our Spinner PD-CNC machine.

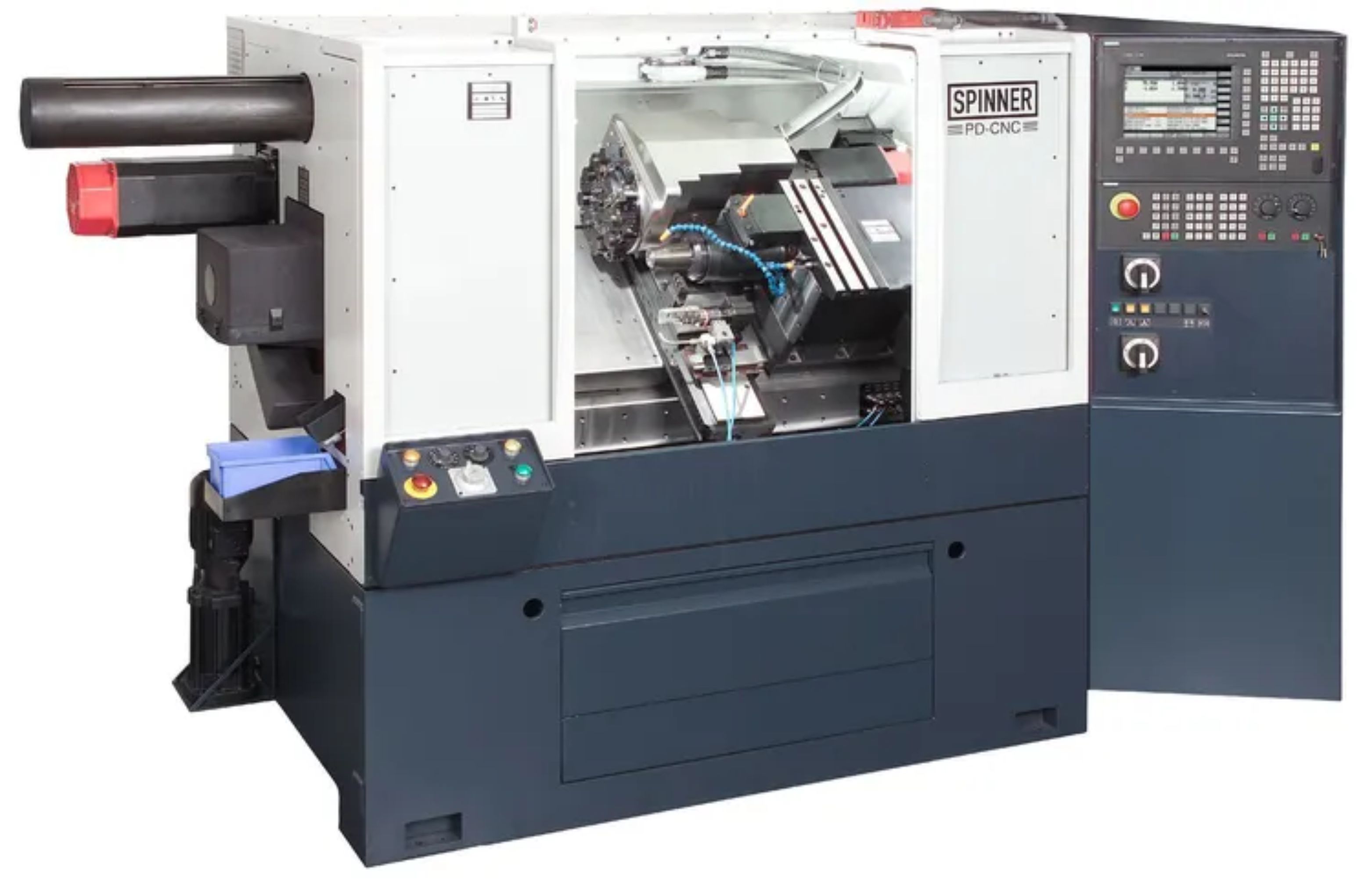

Spinner PD-CNC Lathe
This high-precision, compact CNC lathe is ideal for machining small precision parts in industries such as fine mechanics, optics, medical technology, and automotive. It supports the turning of materials with a hardness > 60 HRC, diamond cutting, and features ultra-precision ball screws and glass scales on all axes for excellent accuracy and surface quality.
Work Area:
- Turning diameter: 300 mm
- Standard turning diameter: 120 mm
- Machining length: 250 mm
- X-axis travel: 400 mm
- Z-axis travel: 400 mm
Main Spindle:
- Maximum spindle speed: 8000 RPM
- Motor power: 7.7 kW (S3 40%)
- Torque: 28 Nm (S3 40%)
- Spindle nose diameter: 100/110 mm
- Spindle bore diameter: 32/42 mm
Tool Turret:
- Number of tool stations: 8 or 16
- Number of driven tools (option): 8 (with 16-station turret)
- Maximum speed of driven tools: 6000 RPM
- Tool holder: 8 x VDI20 / 16 x VDI16
