Spectroscopy

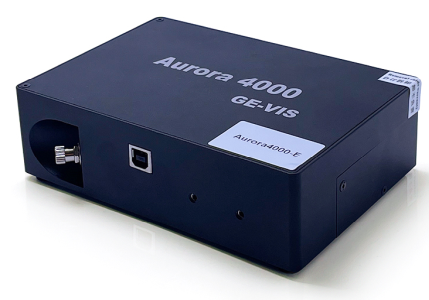

High-Resolution Spectrometer with Optical Fiber Input
- Wavelength range: Configurable between 0.2-1.1 µm according to specific requirements
- Slit sizes: 10, 25, 50, 100, 200 µm
- Resolution: 0.1-6.61 nm, depending on wavelength range and slit size
- Detector: Toshiba TCD1304DG linear CCD
- Number of pixels: 3648
- F6#: f/4
- Focal length: 101.6 mm (input, output)
- Integration time: 4 ms - 10 s
- Speed: 250 Hz via USB 2.0 connection

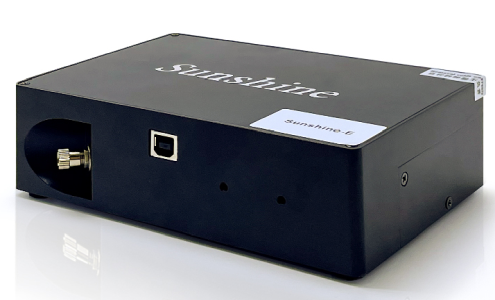

High-Sensitivity Spectrometer with Optical Fiber Input
- Wavelength range: Configurable between 0.2-1.1 µm according to specific requirements
- Slit sizes: 10, 25, 50, 100, 200 µm
- Resolution: 0.2-2.35 nm, depending on wavelength range and slit size
- Number of pixels: 2048
- Integration time: 17 ms - 10 s
- Speed: 250 Hz via USB 2.0 connection

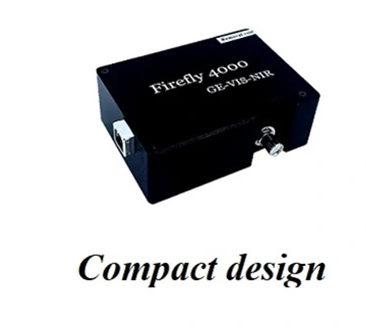

Compact High-Resolution Spectrometer with Optical Fiber Input
- Wavelength range: Configurable between 0.2-1.1 µm according to specific requirements
- Slit sizes: 10, 25, 50, 100, 200 µm
- Resolution: 0.47-7.5 nm, depending on wavelength range and slit size
- Detector: Toshiba TCD1304DG linear CCD
- Number of pixels: 3648
- Integration time: 4 ms - 10 s
- Speed: 250 Hz via USB 2.0 connection

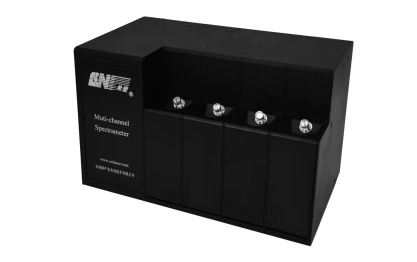

Multi-Channel Spectrometer with Optical Fiber Input
- Wavelength range: Configurable between 0.185-1.2 µm according to specific requirements
- Slit sizes: 10, 25, 50, 100, 200 µm
- Resolution: 0.75 nm
- Detector: Toshiba TCD1304DG linear CCD
- Number of pixels: 3648
- Integration time: 4 ms - 10 s
- Speed: 250 Hz via USB 2.0 connection
| Channels | Wavelength Range (nm) | Resolution (nm) |
|---|---|---|
| 2 channels | ||
| 250-450 | 0.16 | |
| 450-650 | 0.18 | |
| 3 channels | ||
| 250-340 | 0.12 | |
| 340-420 | 0.1 | |
| 420-645 | 0.18 | |
| 4 channels | ||
| 250-450 | 0.16 | |
| 450-650 | 0.18 | |
| 650-850 | 0.2 | |
| 850-1050 | 0.2 | |
| 5 channels | ||
| 249-284 | 0.05 | |
| 284-333 | 0.05 | |
| 333-364 | 0.08 | |
| 364-404 | 0.08 | |
| 404-443 | 0.08 |

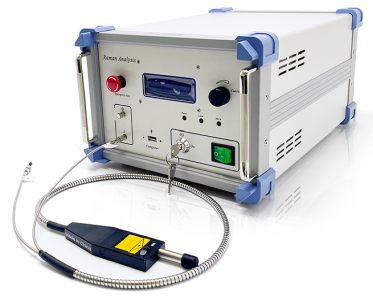

Desktop Raman Spectrometers
Widely used in education, scientific research, food safety, environmental sciences, jewelry identification, and many other fields.
| Wavelength Range | Excitation Wavelength | Measurable Raman Shift |
|---|---|---|
| 405-500 nm | 405 nm | 8-12 cm⁻¹ |
| 532-700 nm | 532 nm | 8-12 cm⁻¹ |
| 785-1100 nm | 785 nm | 5-8 cm⁻¹ |
| 830-1000 nm | 785 nm | 5-7 cm⁻¹ |
Custom wavelength ranges available upon request.

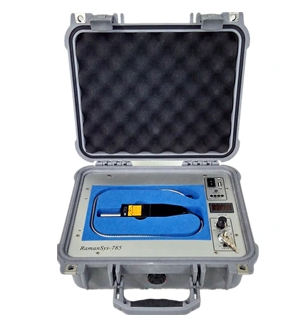

Portable Raman Spectrometers
Portable Raman spectrometers can be applied in the fields of food safety, environmental sciences, judicial identification, and more.
| Wavelength Range | Excitation Wavelength | Measurable Raman Shift |
|---|---|---|
| 405-461 nm | 405 nm | 8-12 cm⁻¹ |
| 488-572 nm | 488 nm | 8-12 cm⁻¹ |
| 532-700 nm | 532 nm | 8-12 cm⁻¹ |
| 633-781 nm | 633 nm | 8-12 cm⁻¹ |
| 785-1100 nm | 785 nm | 5-8 cm⁻¹ |
| 830-1000 nm | 830 nm | 5-7 cm⁻¹ |
Custom wavelength ranges available upon request.

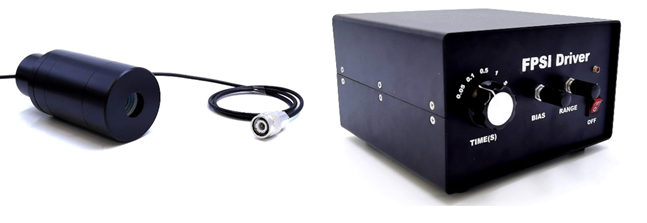

Scanning Fabry-Perot Interferometer
The scanning Fabry-Perot interferometer is a specialized spectrum analyzer designed to detect the fine spectral characteristics of continuous-wave lasers. It is highly suitable for measuring the longitudinal modes of lasers.
- Wavelength Range: 532-633 nm, other wavelengths available upon request
